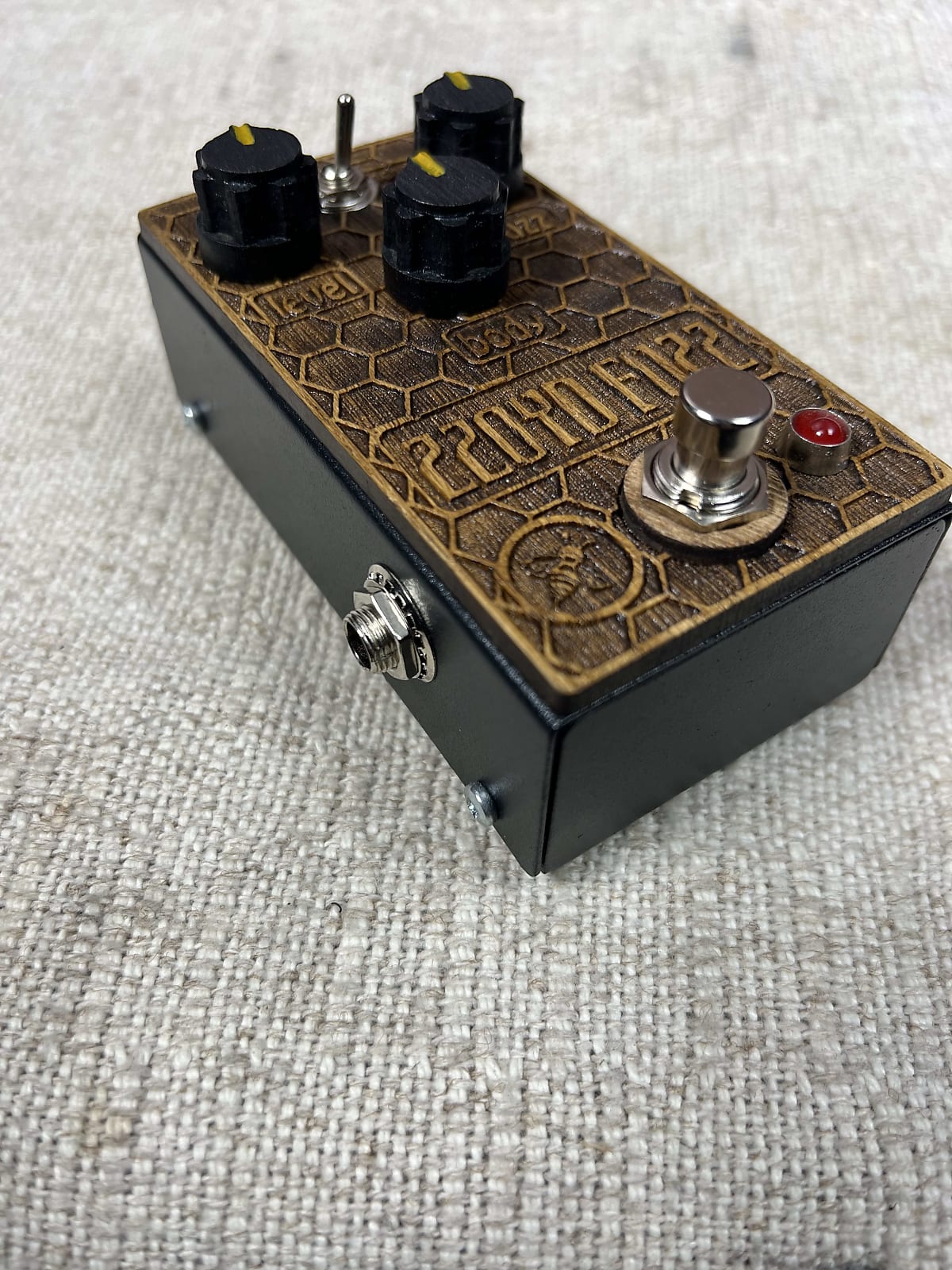

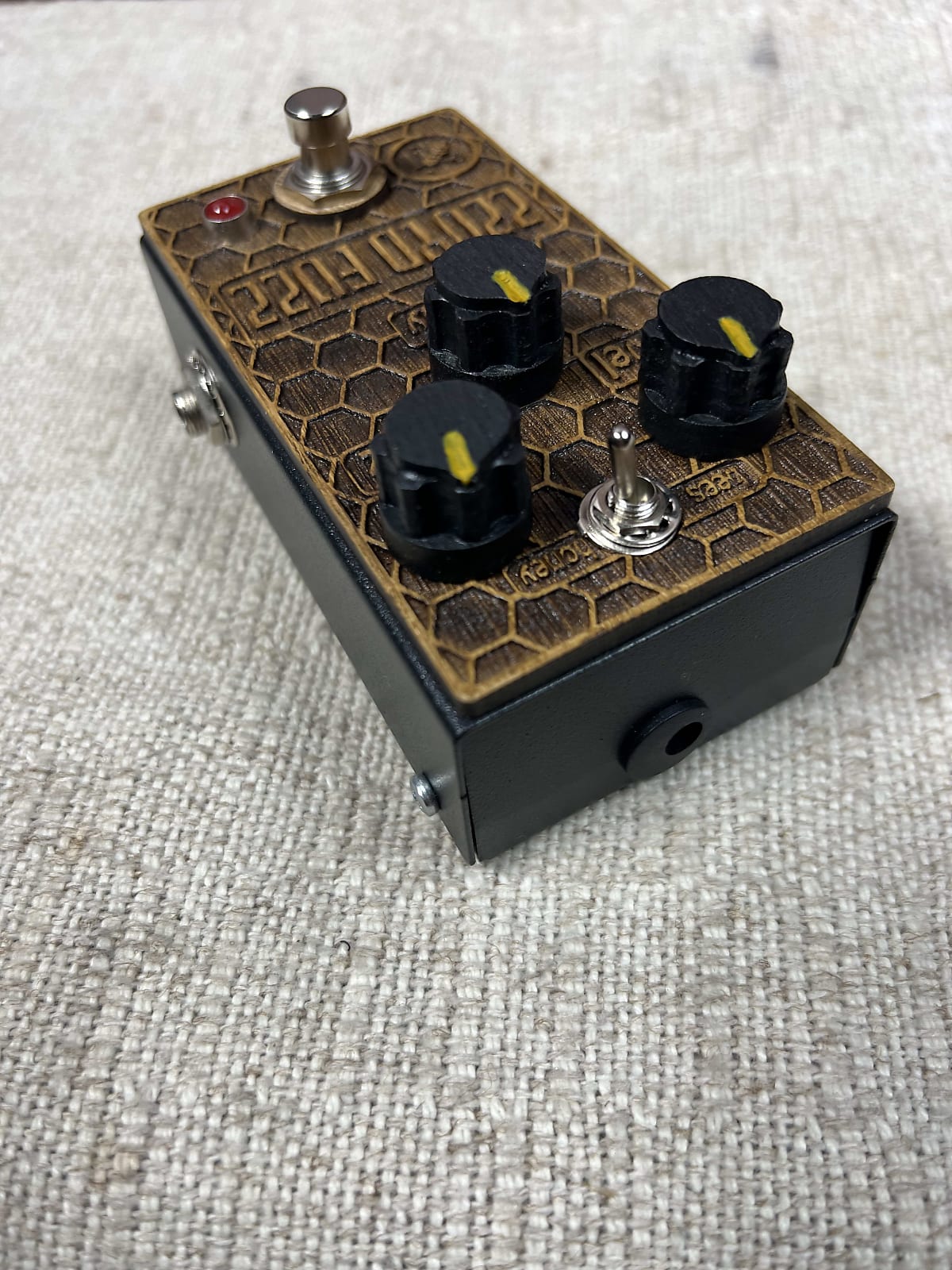

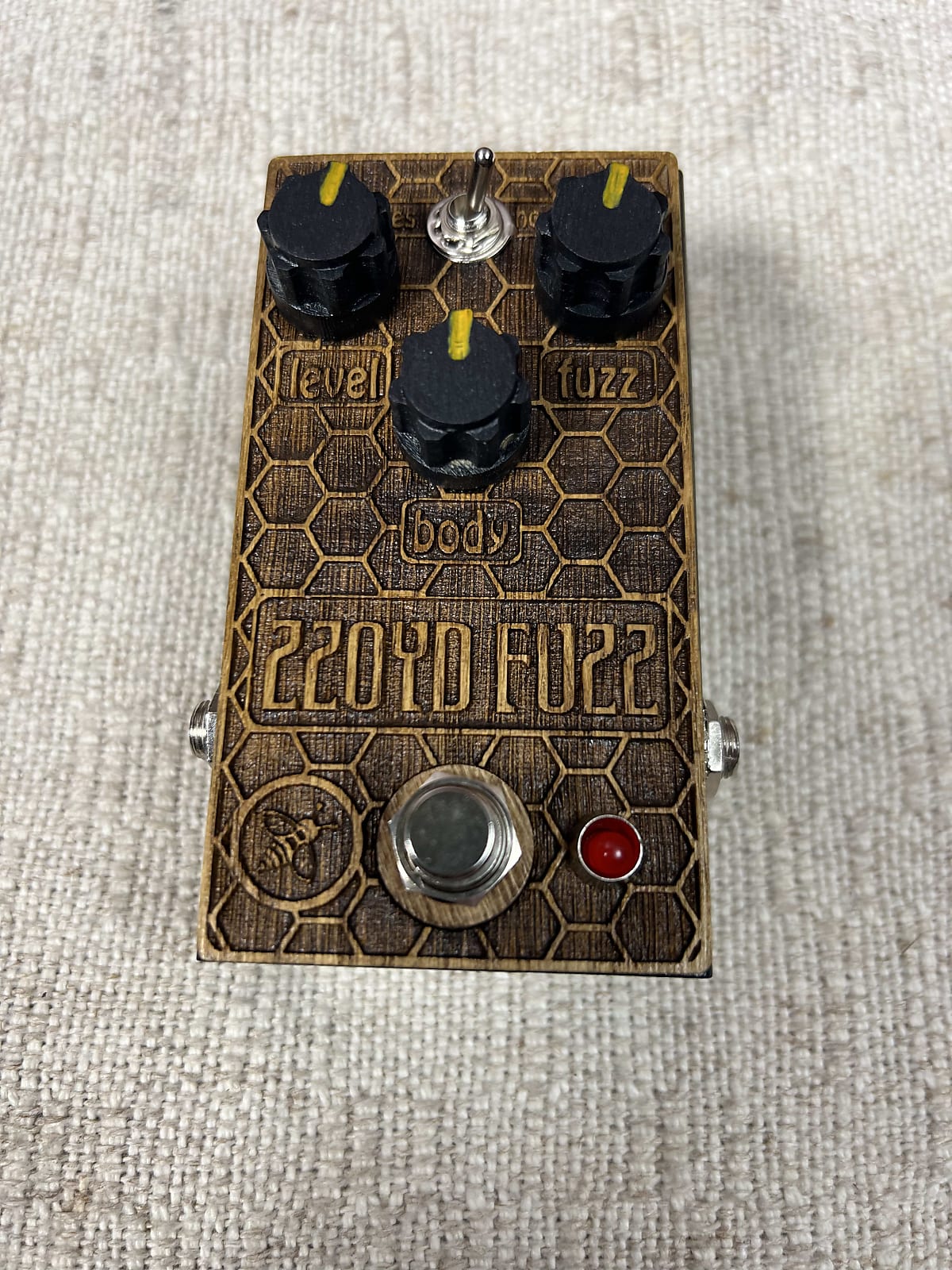

Woodcraft Zzoyd Brass Silicon Fuzz w/Original Soviet Transistors – Natural Wood

All-Analog Signal Processing, True Bypass footswitch

ZZOYD Brass silicon FUZZ made with Original Soviet Union NOS Transistors

LEVEL – Controls the Volume of the pedal. Left is minimum, right is maximum.

FUZZ – Controls the amount of Fuzz. Left is minimum, right is maximum.

TONE – Controls the amount of brightness. Left is darker, right is brighter.

Honey/Bees Toggle – Switch left for a more open, standard Fuzz sound, like a wide wall of Bees, right for a more compressed, focused, viciously sweet Honey sound, like a trombone or even a Duduk.

JACKS

INPUT – 1/4” jack on the top right side of the pedal.

OUTPUT – 1/4” jack on the top left side of the pedal.

POWER – Uses 9V DC ONLY, Negative Center.

There is a protection diode inside to avoid a reverse polarity!

You can use 9v battery outside with battery adapter.

108mA consumption.

Power Requirements

No 9V battery slot inside, use external 9v battery plug adapter or regulated 9VDC power supply with Toroidal transformer,

like Electro-Harmonix, Dan-Electro, Boss, Etc…

(5.5 x 2.1 mm plug, wired center-negative)

NOT newest switching power supply,
